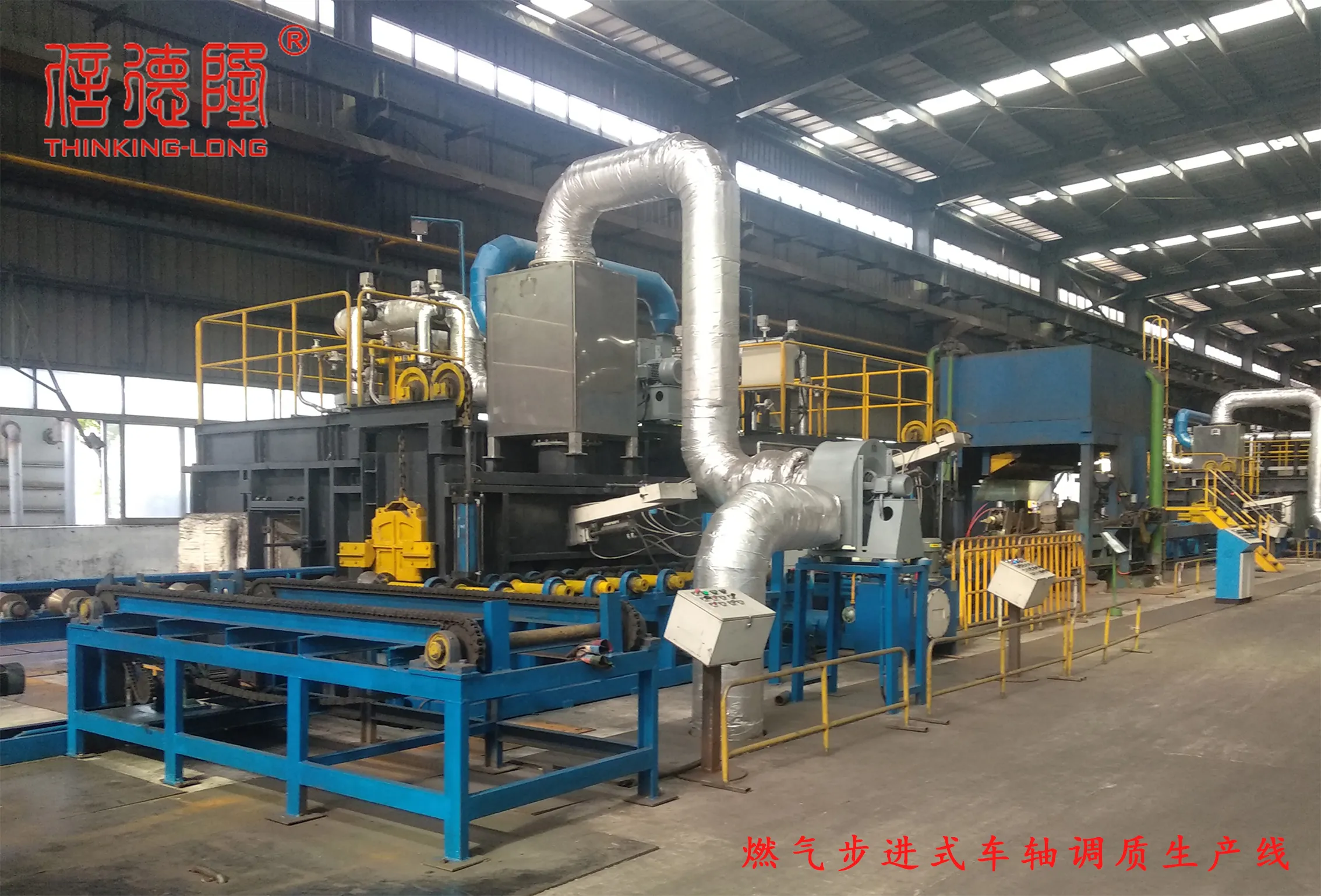

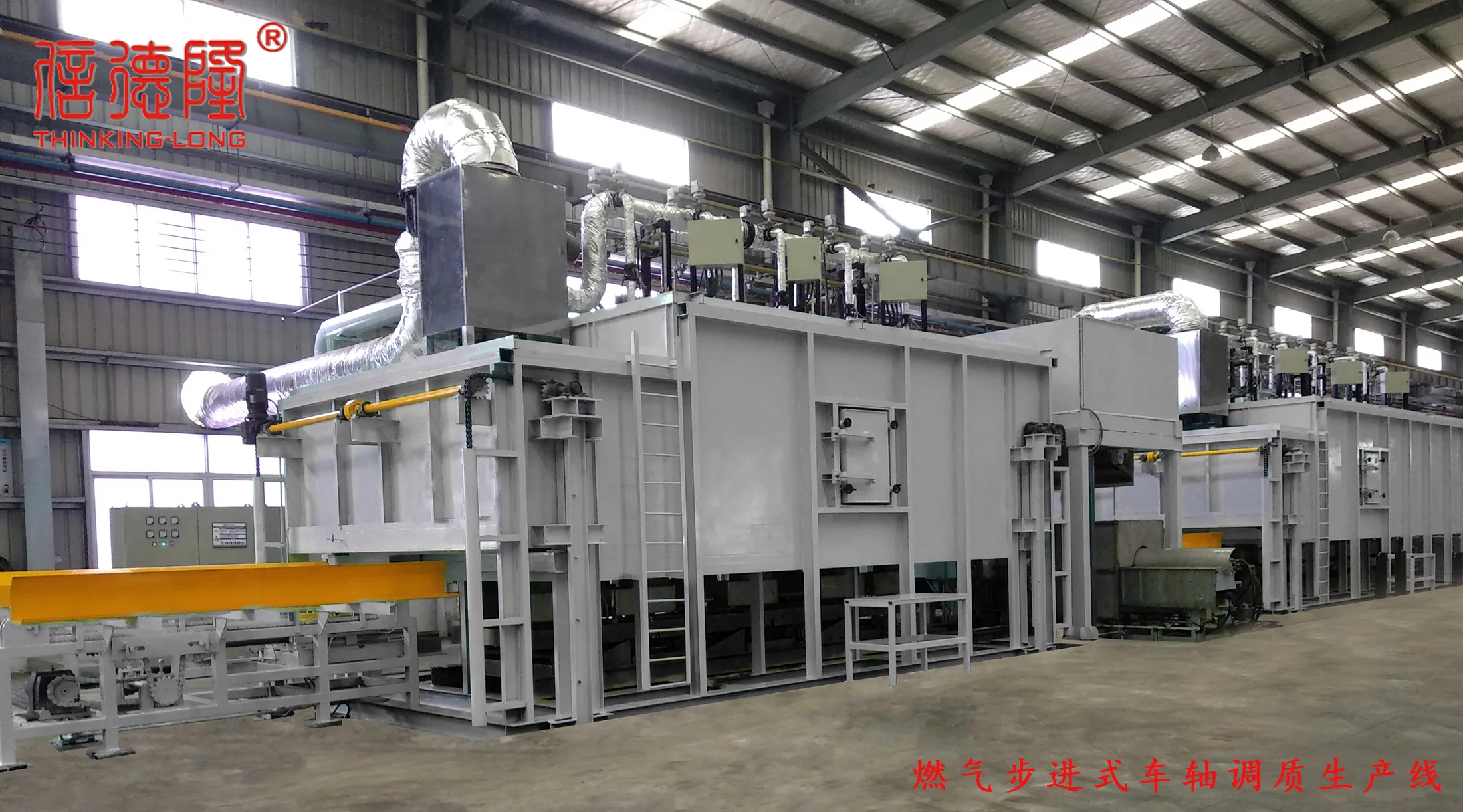

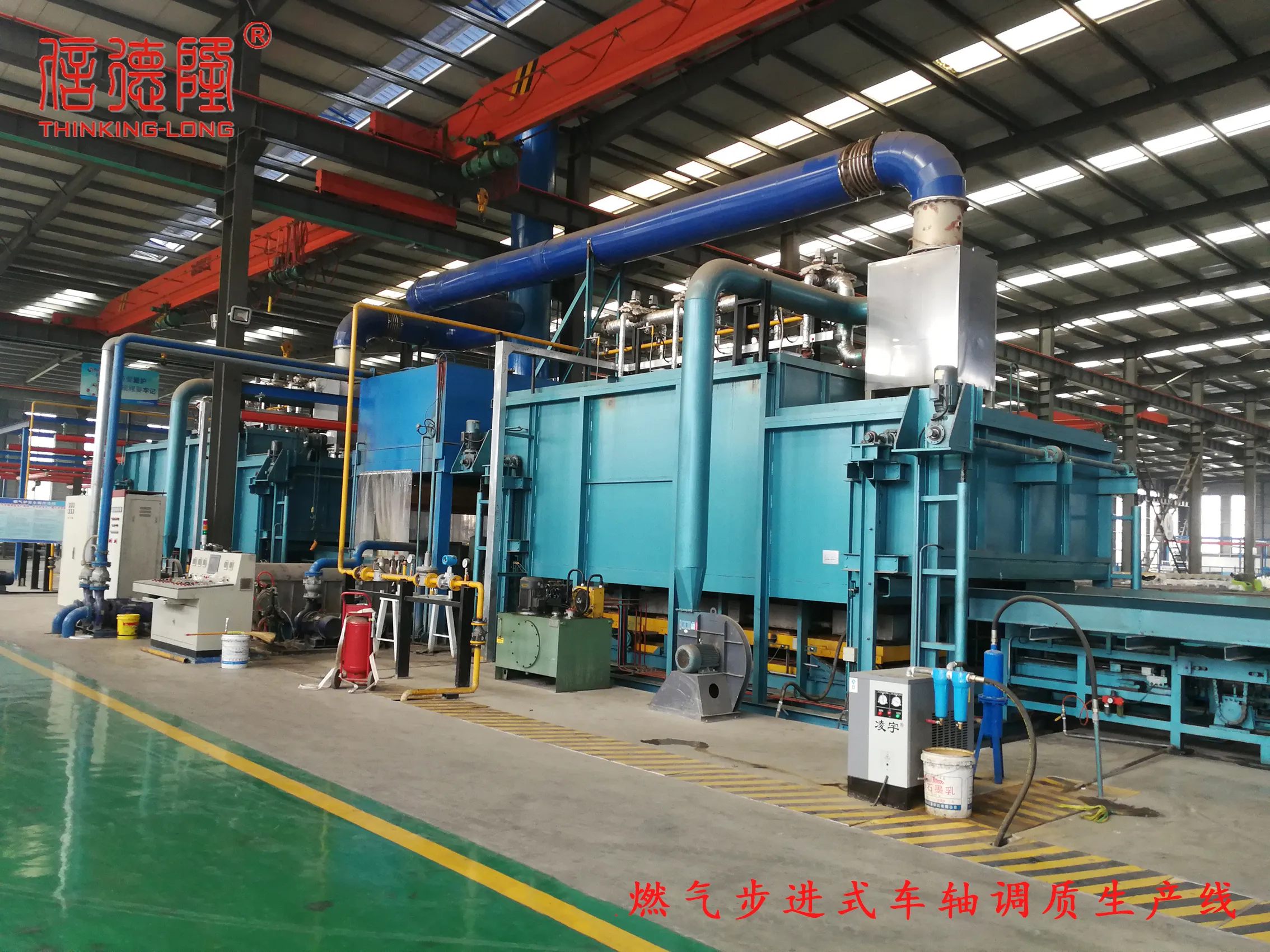

Gas-Fired Walking Beam Axle Quenching & Tempering Production Line
1. Equipment Composition: It consists of feeding and discharging mechanism, quenching furnace, quenching mechanism, tempering furnace, tempering cooling device and electric control system.
2. Available Process: Quenching and tempering.
3. Heating Fuel: Natural gas heating.
4. Processed Workpieces: Heavy-duty axles and other shaft parts.
5. Main Features:
This line adopts a walking beam workpiece conveying method to ensure stable workpiece operation without collision. Equipped with high-performance heat exchangers, it greatly reduces energy consumption compared with electric heating equipment. The specially designed quenching cooling device achieves uniform cooling effect and minimizes workpiece deformation. Adopting distributed control system with high automation degree, the production line can realize unmanned operation mode when equipped with supporting auxiliary equipment.
Core Technical Advantages
1. Multi-point overhead walking beam support, low deformation for variable-section axles
2. Furnace temperature uniformity ≤±10℃, stable fatigue and impact performance
3. Multi-process compatibility: quenching & tempering, normalizing, stress relief annealing
4. Full automatic unmanned operation, compatible with upstream forging and downstream inspection lines
5. Flue gas waste heat recovery system, obvious energy-saving effect
6. Flexible production capacity, support multiple axle specifications for truck, bus and railway
